Product No : HTS Series

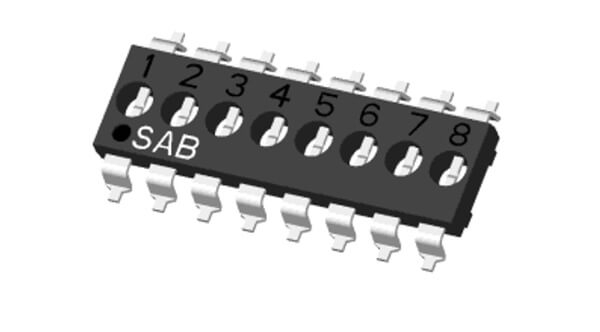

Product Name : DIP Shunt : SMD Lead

HTS

Inquiry

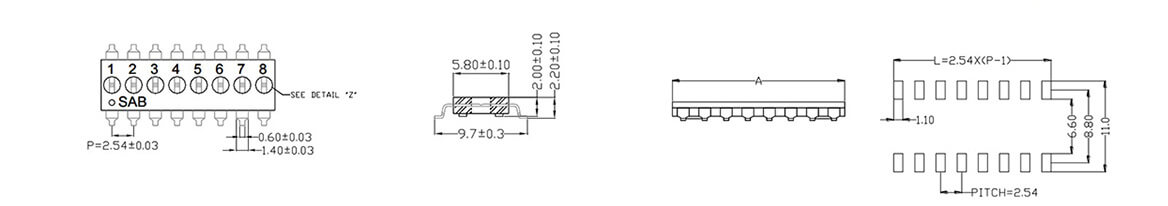

DIMENSION

proimages/pro/DIP-HT-02-s.jpg

  • Cost effective DIP shunt designed for switches with only one-time setup
  • Connected terminal can be easily separated with a ball pen
  • All shunts can be supplied either un-programmed or preprogrammed
  • Rating......................................1A
  • Insulation Resistance ...........100MΩ min at 500VD
  • Dielectric Strength ............... 500VAC/ 1 minute
  • Operating Temperature ..... -55°C~150°C
  • Base: Thermoplatic UL 94V-0, Black
  • Terminal: Copper Alloy, Pure-Tin-plated
  • Tape Sealed: Polyimide film
  • Hand Soldering
    Soldering Iron of 30W or under at 350°C for 3 sec. max. or at 270°C for 5 sec. max.
  • Wave Soldering
    260±5°C for 10 sec. max.
  • Reflow Soldering.
    Peak temperature: 260°C max. The time above 255°C must be 30 sec. max.
  • Tube: HTS/ HTA/ HTH
  • Tape & Reel: HTS
P/NNo. Of PoleDim. AQuantity per Tube
HTS / A / H 02 2 5.08mm 105
HTS / A / H 03 3 7.62mm 70
HTS / A / H 04 4 10.16mm 52
HTS / A / H 05 5 12.70mm 42
HTS / A / H 06 6 15.24mm 35
HTS / A / H 08 8 20.32mm 26
HTS / A / H 09 9 22.86mm 23
HTS / A / H 10 10 25.40mm 21
HTS / A / H 12 12 30.48mm 17

proimages/pro/DIP-HT-01-WD_(1).jpg

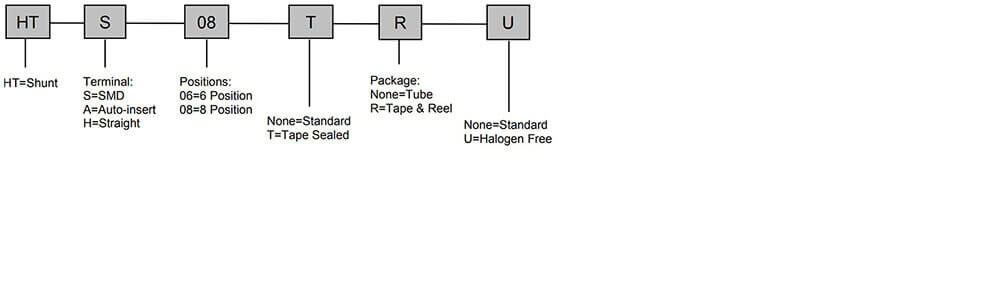

proimages/pro/DIP-HT-01-OI_(1).jpg
